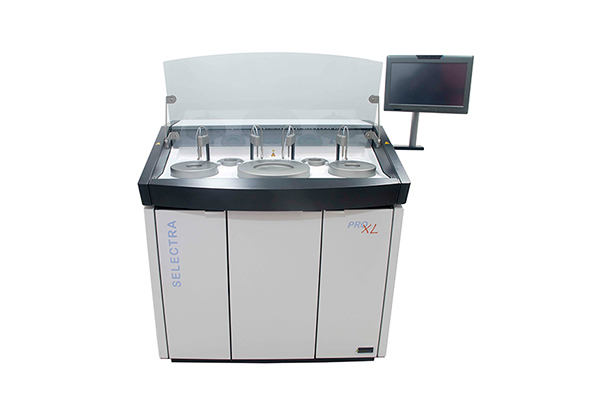

Created around our customers’ needs. The Selectra ProXL is the most productive and fully featured Selectra Pro system with an enhanced ergonomic design.

Updated design with integrated touch screen, peltier reagent cooling and internal optimized ISE module to enable increased laboratory productivity and reduce errors.

Together with a superior menu of ready-to-use, liquid stable reagents, the Selectra ProXL provides a fully integrated chemistry solution for medium sized laboratory locations.

The Selectra ProXL runs up to 450 tests per hour to serve laboratories with primary, STAT or back-up testing needs. The system offers minimal maintenance and effective use of consumables to reduce operational cost.

Processing Center

Unique sample and reagent probes improve operation

  • Liquid sensor detection
  • Collision protection
  • Precision metering

Optimized test environment ensures accurate results

  • Unique ‘vortex’ mixing
  • Temperature controlled, 37°C

Disposable cuvette rotor with automated onboard wash

  • 10,000 tests / cuvette rotor
  • minimal water usage of up to 1 liter per hour

Reagent rotors with integrated cooling

  • Enables 28 day onboard stability for most reagents
  • 64 reagent positions
  • Ready-to-use, liquid-stable reagents
  • Methodologies referenced to industry standards

Barcoded reagents for easy loading and tracking

  • Reagent bottle barcode loads assay ID, bottle size, batch number, lot number and expiry date

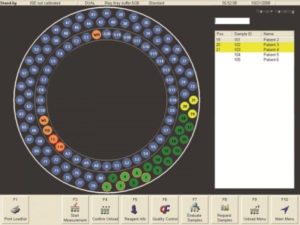

Sample rotor with Positive Sample Identification (PSID)

  • Increases productivity and reduces errors
  • Accommodates 80 samples and 12 auxiliary positions
  • Primary tubes (13 x75 mm) and sample cups

Dry ISE Technology

pro selectraPatented dry Ion Selective Electrodes (ISE) technology

  • Reduces reagent waste and operating costs
  • Long onboard stability from 3 months – 2 years
  • Large linear range

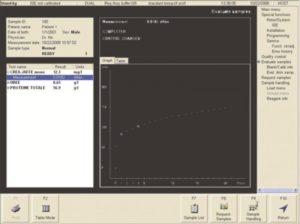

Command Center

Simplicity that drives productivity

  • Touch screen monitor with easy and fast touch access to key operating areas
  • Easy to use software enables operators to learn quickly and operate system within an hour
  • Auto validation of test results
  • Minimal daily maintenance with option to automate and print key tasks
  • Run priority STAT tests during a test run
  • Graphic and audible alerts

SPECIFICATIONS

Throughput

  • Up to 450 photometric and electrolyte tests/hour.

Reagent System

  • 64 refrigerated reagent positions for 10 mL, 25 mL and 50 mL reagent bottles
  • Cooled to 10°C +/- 4°C at normal laboratory conditions
  • All reagent positions can be assigned as R1, R2 and R3.

Sample System

  • 80 barcode readable positions
  • All positions fit 13×75 or 16x 100mm primary and secondary tubes and pediatric cups
  • All positions can be used for calibrators, controls, normal, pediatric and STAT samples

Pipetting System

  • 1000 µL reagent syringe:
    • R1 volume 110-400 µL
    • R2 volume 0-180 µL
    • R3 volume 0-180 µL
    • Programmable in 1 µL steps
  • 100 µL sample syringe:
    • Sample volume 1-30 µL
    • Programmable in 0.1 µL steps
  • Pre programmed ratio selectable from ratios 1:2 up to 1:100 with 3 diluents
  • Pre-heated probe with level detection, collision protection and integrated mixer.

Cuvette Rotor

  • Cost effective, semi-disposable cuvette rotor with 48 cuvettes
  • Up to 10.000 tests per rotor
  • Typical reagent consumption 220 µL per test
  • Measurement temperature 37°C, controlled by Peltier elements.

Light Source

  • Quartz-iodine lamp 12V-20W

Wavelength Range

  • Optical unit with 8 position filter wheel
  • 340, 405, 505, 546, 578, 620, 660, 700 nm standard wavelengths
  • Other wavelengths available on request.

Photometric Range

  • -0.1 to 3.0 Absorbance
  • Resolution 0.001 Abs.

Analytical Modes (Single, Dual and Triple reagent system)

  • Kinetic measurement with linearity check
  • Mono- and bichromatic end point measurement with or without bichromatic reagent blank and/or sample blank correction
  • Two point measurement; with or without slope blank
  • Graphic plot of all measuring points
  • Predilution and automatic reflex dilution as needed
  • Range of calibration models
  • Non-linear calibration curves
  • Prozone check for immunology tests
  • Cut-off declaration
  • Calculated tests.

Quality Control

  • Up to 15 controls can be defined, 3 per test
  • Westgard or Basic QC rules
  • Levey-Jennings plots
  • Quality control statistics.

Standards and Regulations

  • CE -IVD
  • CB
  • UL.

Dimensions

  • 117 x 115 x 80 cm (W x H x D)
  • 46.1 x 45.3 x 31.5 in(W x H x D)
  • Weight: 190 kg (419 lbs).

Interface

  • Host-Query interface available
  • Host: RS 232 or Ethernet (TCP/IP) through LIS-2A protocol.

Environmental Conditions

  • Temperature: 15 – 32 °C (59 – 90 °F)
  • Humidity: 15 – 88% RH
  • Altitude: up to 2000 m
  • Plumbing: No dedicated water or drain required
  • Electrical:
    • Voltage: 100 – 240 Vac
    • Frequency: 50 – 60 Hz
    • Power (max): 380 VA .

Integrated PC

  • Touch screen navigation
  • Operating system: Windows™ XP

Options

Barcode Reader

  • Hand held CCD barcode reader used for reagent identification

Eco Kit

  • Enables separate collection of concentrated measurement mixture and dilute (wash) waste

Dry ISE Module

  • Patented Solid State Electrode Technology
  • Indirect measurement
  • Dilution 1:14
  • Measures Sodium, Potassium, Chloride and CO2.

Positive Sample Identification

  • Positive Sample Identification (PSID) reads all popular barcodes.

Printer

  • Printer supported by MS Windows™.

ProActive Maintenance Kit

  • Complete parts kit for annual preventive maintenance.
