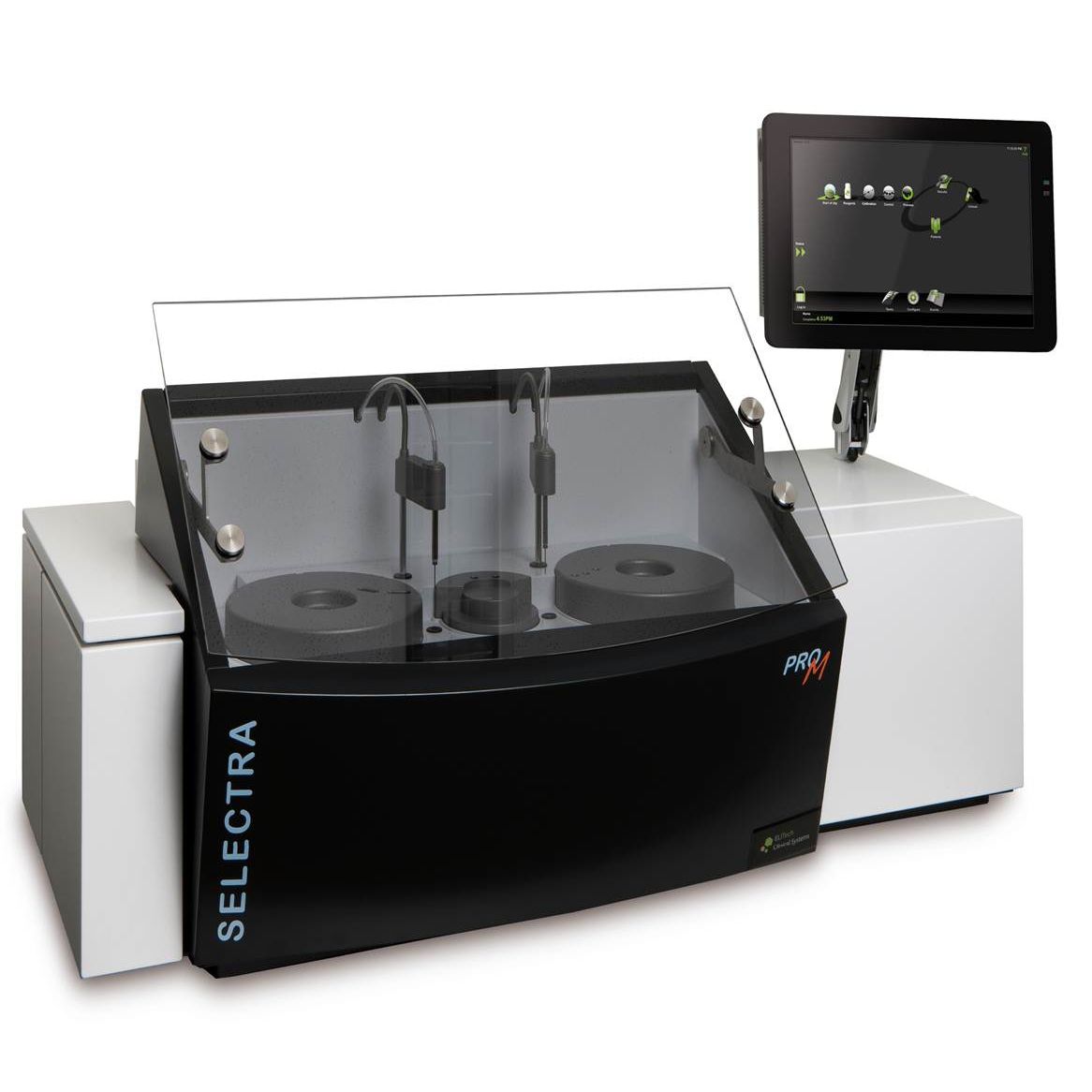

Setting the new standard in BenchTop chemistry systems, the Selectra ProM offers a new compact design, with best-in-class operator interface. New system features enable significant productivity and performance enhancements not typically found in BenchTop chemistry analyzers. Together with a superior menu of ready-to-use, liquid stable reagents, the Selectra ProM provides a fully integrated chemistry solution for smaller or satellite laboratory locations. The Selectra ProM system runs up to 266 tests per hour to serve laboratories with primary, STAT or back-up testing needs. The system offers minimal maintenance and effective use of consumables to truly reduce operational cost.

FEATURES

Processing Center:

Unique sample and reagent probes improve operation

  •  Liquid sensor detection
  •  Collision protection
  •  Precision metering

Optimized test environment ensures accurate results

  •  Unique ‘vortex’ mixing
  • Temperature controlled, 37°C

Disposable cuvette rotor with automated onboard wash

  • 10,000 tests / cuvette rotor

Reagent rotor with integrated cooling

  • Enables 28 day onboard stability for most reagents
  •  32 reagent positions
  •  Ready-to-use, liquid-stable reagents
  •  Methodologies referenced to industry standards

Barcoded reagents for easy loading and tracking

  • Reagent bottle barcode loads assay ID, expiration date, lot number, bottle size, test count
  • Test parameters, calibration, and control values also loaded via barcode

Sample rotor with Positive Sample Identification (PSID)

  • Increases productivity and reduces errors
  • Accommodates 50 samples and 12 auxiliary positions
  • Primary tubes (13 x75 mm) and sample cups

Dry ISE Technology:

Patented dry Ion Selective Electrodes (ISE) technology

  • Reduces reagent waste and operating costs
  • Long onboard stability from 3 months – 2 years
  • Longer linear range

Command Center:

New best-in-class operator interface with Selectra Touch Pro software

  • Touch screen monitor with next generation software navigation
  • Intuitive color icons guide the operator through daily workflow
  • Rapid access to key operations at a touch

Powerful software capabilities simplify operation

  • Automated sample programming with optional host query LIS interface and PSID
  • Real time tracking to plan and manage on-board inventory
  • 40 configurable result checks enable auto validation
  • Automated programming of assays, calibrators and control values using barcodes
  • Maintenance tasks can be scheduled to run automatically when chemistry analyzer is not in use
  • Powerful reporting and back up functionality

SPECIFICATIONS

Throughput

  • Up to 266 photometric and electrolyte tests/hour.

Reagent System

  • 32 refrigerated reagent positions for 10 mL, 25 mL and 50 mL reagent bottles
  • Cooled to 10°C +/- 4°C at normal laboratory conditions
  • All reagent positions can be assigned as R1, R2 and R3.

Sample System

  • 50 barcode readable positions
  • 12 auxiliary positions
  • All positions fit 13×75 mm primary and secondary tubes and pediatric cups
  • All positions can be used for calibrators, controls, normal, pediatric and STAT samples.

Pipetting System

  • 1000 µL reagent syringe:
    – R1 volume 110-400 µL
    – R2 volume 0-180 µL
    – R3 volume 0-180 µL
    – Programmable in 1 µL steps
  • 100 µL sample syringe:
    – Sample volume 1-30 µL
    – Programmable in 0.1 µL steps
  • Programmable dilution ratios 1:5 up to 1:200 in one step increments with 3 possible diluents
  • Pre-heated probe with level detection, collision protection and integrated mixer

Cuvette Rotor

  • Cost effective, semi-disposable cuvette rotor with 48 cuvettes
  • Up to 10.000 tests per rotor
  • Typical reagent consumption 220 µL per test
  • Measurement temperature 37°C, controlled by Peltier elements

Light Source

  • Quartz-iodine lamp 12V-20W

Wavelength Range

  • Optical unit with 8 position filter wheel
  • 340, 405, 505, 546, 578, 620, 660, 700 nm standard wavelengths
  • Other wavelengths available on request

Photometric Range

  • -0.1 to 3.0 Absorbance
  • Resolution 0.001 Abs

Analytical Modes (Single, Dual and Triple reagent system)

  • Kinetic measurement with linearity check
  • Mono- and bichromatic end point measurement with or without bichromatic reagent blank and/or sample blank correction
  • Two point measurement; with or without slope blank
  • Graphic plot of all measuring points
  • Predilution and automatic reflex dilution as needed
  • Non-linear calibration curves
  • Prozone check for immunology tests
  • Cut-off declaration
  • Calculated tests

Quality Control

  • Up to 15 controls can be defined, 3 per test
  • Westgard or Basic QC rules
  • Levey-Jennings plots
  • Quality control statistics

Standards and Regulations

  • CE -IVD
  • CB
  • FDA
  • UL

Dimensions

  • 122 x 75 x 61 cm (W x H x D)
  • 48 x 30 x 24 in(W x H x D)
  • Weight: 95 kg (210 lbs)

Interface

  • Host-Query interface available
  • Host: RS 232 or Ethernet (TCP/IP)* through LIS-2A protocol

*Under development

Environmental Conditions

  • Temperature: 15 – 32 °C (59 – 90 °F)
  • Humidity: 15 – 85% RH
  • Altitude: up to 2000 m
  • Plumbing: No dedicated water or drain required
  • Electrical:
    – Voltage: 100 – 240 Vac
    – Frequency: 50 – 60 Hz
    – Power (max): 380 VA

Integrated PC

  • Touch screen navigation
  • Operating system: Windows™ Embedded

Other

  • Assay technology: Colorimetry and immunoturbidimetry
  • ISE module: K, Na, Cl, CO2

Barcode Reader

  • Hand held CCD barcode reader used for reagent identification and automated programing of assays, controls, and calibrators

Dry ISE Module

  • Patented Solid State Electrode Technology
  • Indirect measurement
  • Dilution 1:14
  • Measures Sodium, Potassium, Chloride and CO2

Positive Sample Identification

  • Positive Sample Identification (PSID) reads all popular barcodes

Printer

  • Printer supported by MS Windows™

ProActive Maintenance Kit

  • Complete parts kit for annual preventive maintenance
