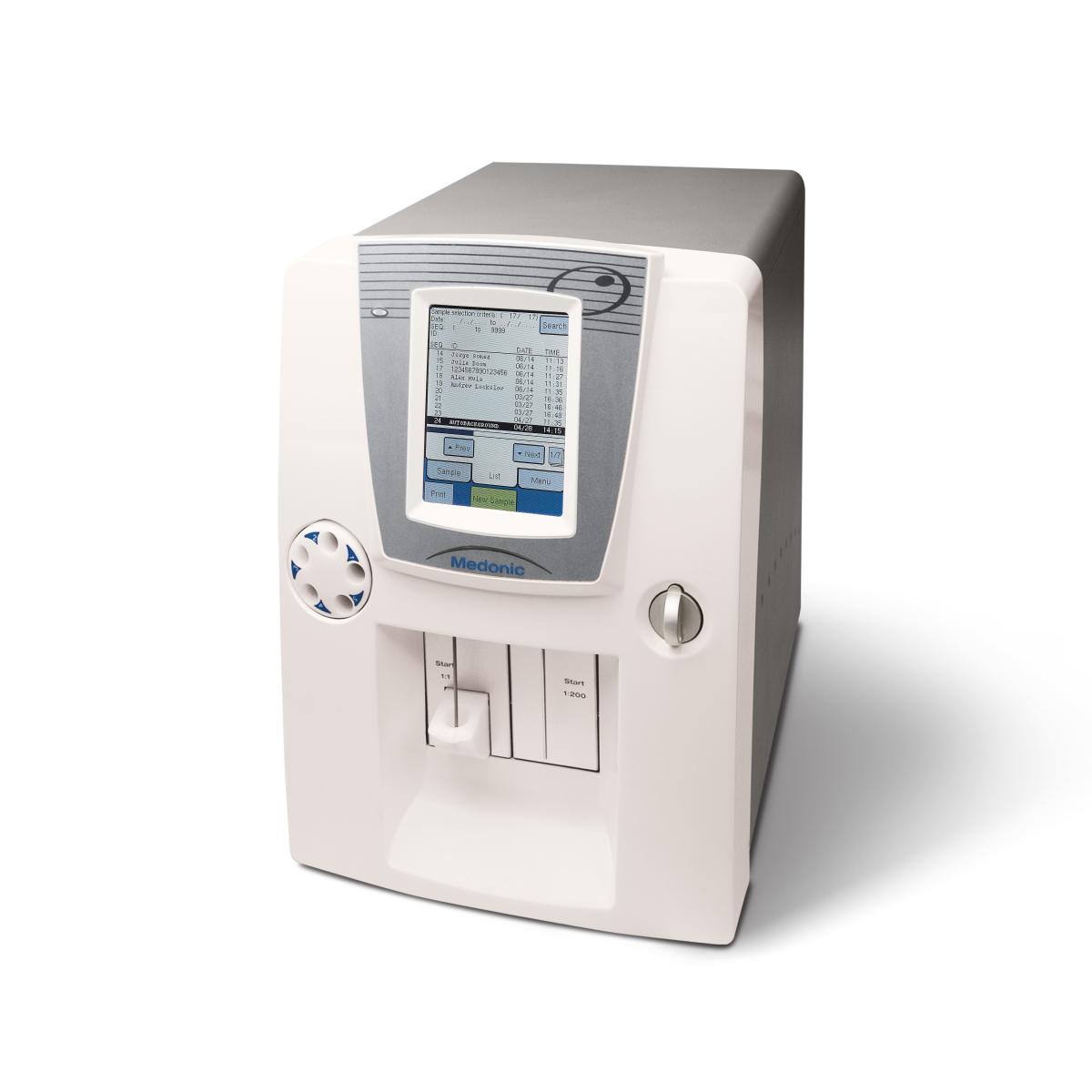

Medonic M16M/M20M is the analyzer for the mainstream laboratory that prioritizes quality results from a quality cell counter. Equipped with MPA (Micro Pipette Adapter) System and built-in mixer.
• Color Touch Screen
• 16/20 parameters
• 60 samples per hour
• QC program
• External Barcode reader
• Micro Capillary Adapter
• Built-in mixer
Specifications
| Prinsip pengukuran, RBC, WBC, PLT | Impedansi |
| Prinsip pengukuran HGB | Fotometer, metode bebas Cyanide 535 nm + 5 nm |
| WBC diskriminator terprogram | Ya, diskriminator tersebar |
| Sistem sampling | Katup geser tertutup (Close Shear Valve) |
| Parameter yang dilaporkan:
16 parameter
Tambahan untuk 20 parameter |
WBC, HGB, RBC, PLT, HCT, MCV,
RDW, MPV, MCH, MCHC, LYM% , LYM, MID%, MID, GRAN%, GRAN, RDW, PDW, PCT, LPCR |
| Volume darah open tubes | ≤ 90 μl |
| Volume darah dengan MPA | 20 μl |
| Waktu untuk sampel open inlet dan MPA | 53 detik |
| LCD | Berwarna, layar sentuh TFT |
| Keyboard | Virtual incorporated keyboard (external keyboard memungkinkan) |
| Jumlah sampel per jam | 67 sampel |
| QC | Mean, SD, CV, Levey-Jennings Plots dan X-B
dengan ≤ 10.000 catatan sampel |
| Peringatan untuk parameter abnormal | Ya |
| Floating discriminator RBC/PLT | Ya |
| Automatic HGB blank untuk setiap sample | Ya |
| Carry-over | RBC, HGB, WBC ≤ 1%, PLT ≤ 2% |
| Pembaca barcode | Ya |
| Serial output | Ya (Sesuai standar EN 60950) |
| Main Voltage/Fuses | 230V fuse 5 x 20 mm T1, 6A, 250V
120V fuse 5 x 20 mm T3, 15A, 250V |
| Konsumsi listrik | Max 100 VA |
| Konsumsi listrik (stand-by) | Max 20 VA |
| Frekuensi | 50/60 HZ |
| Temperatur | 18-32 ˚C (64-90 ˚F) |
| Kelembaban (none condensing) | Hingga 80% |
| Dimensi | 410 x 290 x 460 ( P x L x T ) |
| Berat | ≤18 kg (versi standar) |
